PLC Control Automatic Cap Screwing Machine 2500-12000pcs/h

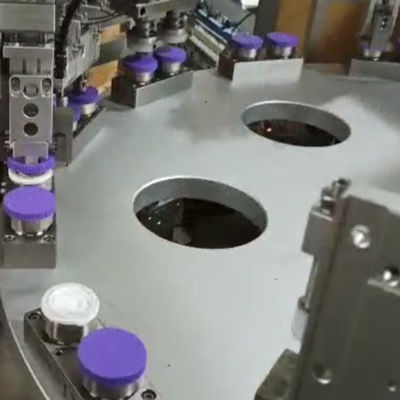

Hình ảnh lớn : PLC Control Automatic Cap Screwing Machine 2500-12000pcs/h

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	SENCAN
Chứng nhận:	CE, ISO9001
Model Number:	SC-TP-718

Thanh toán:

Minimum Order Quantity:	1 set
Giá bán:	Negotiate the price according to custom actual situation requirement
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	1-10 sets

Tiếp xúc

Chi tiết sản phẩm

Control System:	PLC	Power Supply:	AC 220V/50Hz
Operation:	Touch screen	Suitable Product:	screw cap
Host Machine Size:	L1200W900H1670mm	Air Consumption:	0.3m³/min
Capacity:	2500-12000pcs/h	Speed:	Adjustable
Power:	Servo motor	Product Type:	Automatic
Satisfactory Rate:	About 99%	Warranty:	1 year
Làm nổi bật:	PLC control cap screwing machine , automatic cap screwing machine 12000pcs/h , high-speed cap screwing machine with warranty

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require scew fasten assembling
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
