Máy lắp ráp Euro Cap
Created with Pixso.

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Tên thương hiệu: SENCAN
Số mô hình: SC-TP-815
MOQ: 1 bộ
giá bán: Negotiate price according to actual situation
Điều khoản thanh toán: T/T, L/C
Khả năng cung cấp: 2-10 BỘ
Thông tin chi tiết
Nguồn gốc:
TRUNG QUỐC
Chứng nhận:
CE, ISO9001
Năng lực lắp ráp:
4500-12000/giờ
Áp suất không khí:
0,6 MPa
Kiểu:
Tự động
Tốc độ:
có thể điều chỉnh
Sức mạnh chính:
Servo
Lái xe:
Động cơ servo
Loại chai:
Chai nhựa
Sản phẩm áp dụng:
Nắp gập đôi
Máy đo áp suất không khí:
SMC
Điều khiển:
PLC
Cơ chế:
Servo
Chế độ hoạt động:
Tự động
Vật liệu sản phẩm:
Kim loại/nhựa
chi tiết đóng gói:
Vỏ gỗ
Làm nổi bật:

0.6 MPa Air Pressure Euro Cap Assembly Machine

,

4500-12000 per/hour Automatic Cap Assembly Machine

,

99% Qualified Rate Infusion Cap Assembly Machine

Mô tả sản phẩm

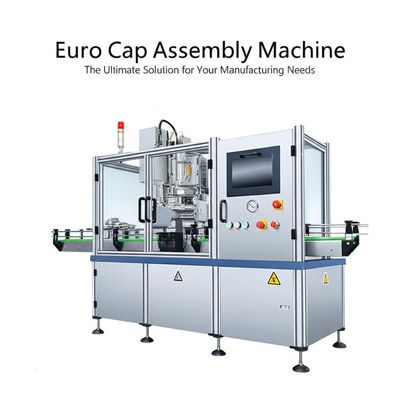

Euro Cap Assembly Machine - The Ultimate Solution for Your Manufacturing Needs
Product Features
  • Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
  • Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
  • Independent driving source at each workstation for simplified maintenance
  • Product-contact surfaces are polished for optimal product protection
  • Automated foil cutting and welding process
  • Integrated check function after each assembly step to eliminate defective products
  • User-friendly PLC control system with human-machine interface operation
  • Precision servo motor + indexing drive system ensures high assembly accuracy
  • Pneumatic power system reduces maintenance time and technical requirements
  • Fully customizable to meet specific product specifications and production demands
Technical Specifications
Applicable Products Peel seal foil caps, foil seal closures and lids
Production Speed 1,500-8,500 pieces/hour (customizable)
Product Qualification Rate Above 99%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW/hour
Dimensions Varies according to production speed requirements
Weight Approximately 2,000kg
Operator Requirements 3 sets/2 persons (recommended 1 set/person)
