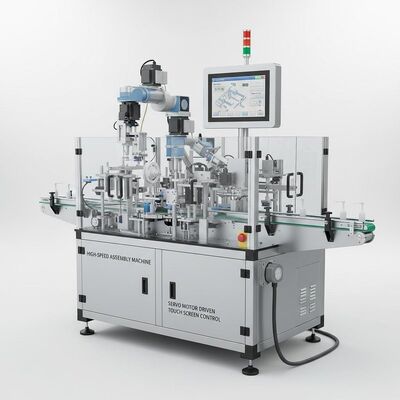

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control
High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

Hình ảnh lớn :  High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: SENCAN
Chứng nhận: CE, ISO9001
Số mô hình: SC-TK-795
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: Negotiate price according to actual situation
chi tiết đóng gói: hộp gỗ
Thời gian giao hàng: 90 ngày
Điều khoản thanh toán: T/T, L/C
Khả năng cung cấp: 1-20 bộ
Chi tiết sản phẩm
Chứng nhận sản phẩm: CN ngôn ngữ: Tiếng Anh/Tiếng Trung
Sản phẩm áp dụng: Mũ thạch Bảo hành: 12 tháng
Loại lắp ráp: Hoàn toàn tự động Tiêu thụ không khí: 0,5m³/phút
Năng lực lắp ráp: công suất lớn Loại hoạt động: Bàn xoay
phương pháp hoạt động: Điều khiển màn hình cảm ứng Phạm vi kích thước sản phẩm: Có thể tùy chỉnh
Chế độ hoạt động: Tự động Cơ chế: Động cơ phụ
Làm nổi bật:

1500-2500pcs/hr Lotion Pump Assembly Machine

,

Servo Motor Driven Trigger Sprayer Assembly Machine

,

Touch Screen Control Liquid Sprayer Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine
Key Features

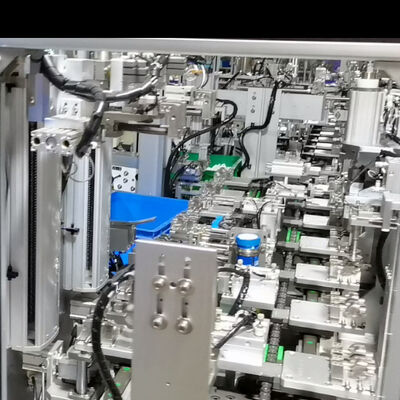

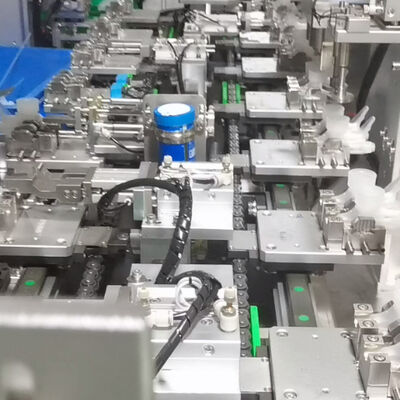

  • Linear sliding rail conveying system with servo motor drive for precise intermittent movement
  • Static fixtures during assembly with precise positioning and secondary positioning at each workstation
  • Independent manipulators at each station for simplified maintenance
  • Cylinder-powered manipulators for faster spare parts changes and easier debugging
  • Automatic silicone oiling during tube insertion process with 4L oil storage capacity
  • Optional enclosure for feeding plate to reduce production noise
  • Comprehensive detection after each assembly process to eliminate defective products
  • PLC system control with touch screen operation interface
Technical Specifications

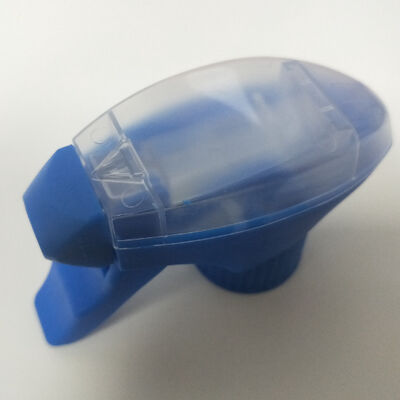

Applicable Products Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed 1500-2500 pieces per hour (customizable to customer requirements)
Qualified Product Rate Above 98%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW per hour
Dimensions Actual size varies with production speed requirements
Weight Approximately 3000kg
Operator Requirement 1 person per machine set
